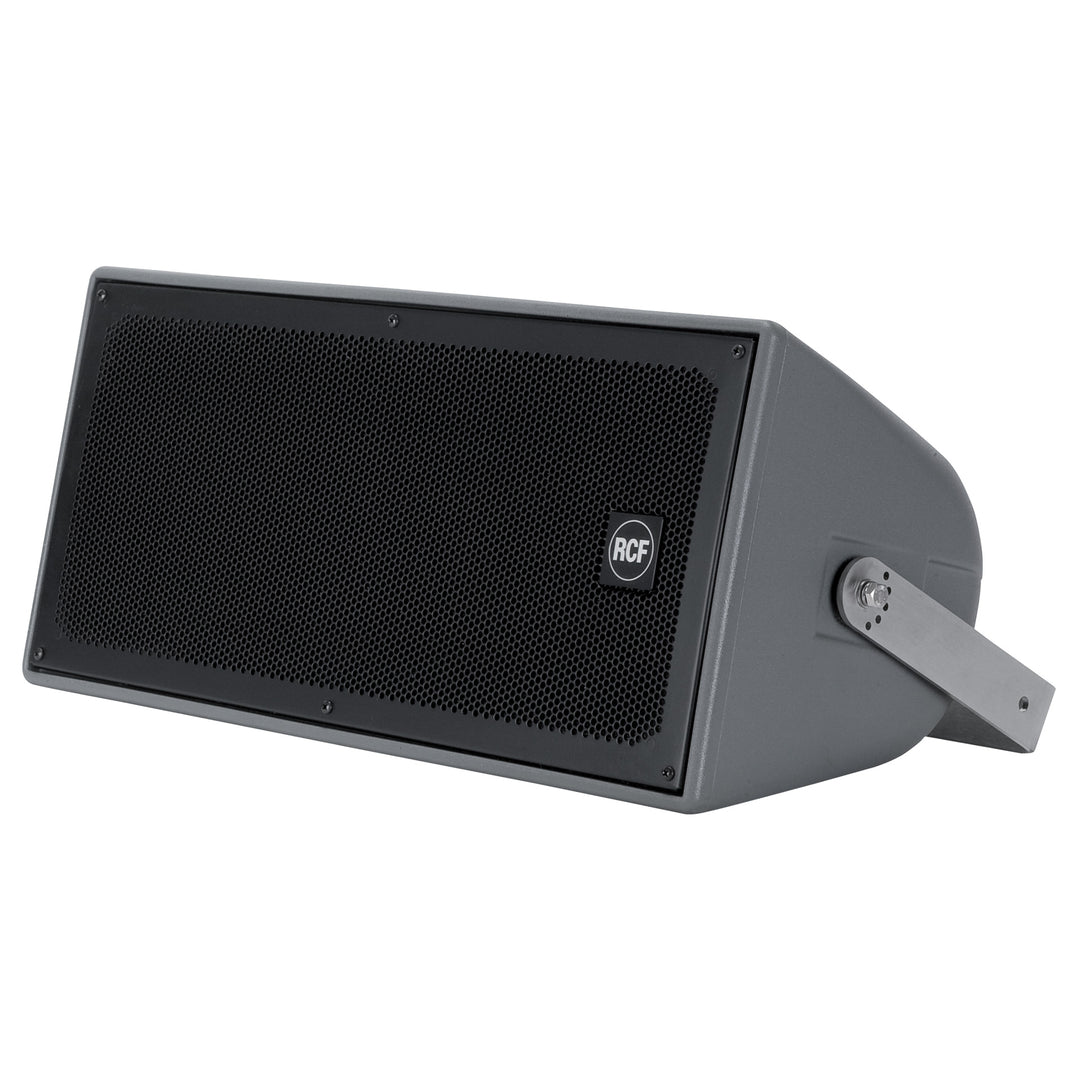

A weatherproof indoor/outdoor two-way full-range speaker system with an IP 55 (International Protection) rating, the P5228 is ideal for stadiums, theme parks, and sports facility installations.

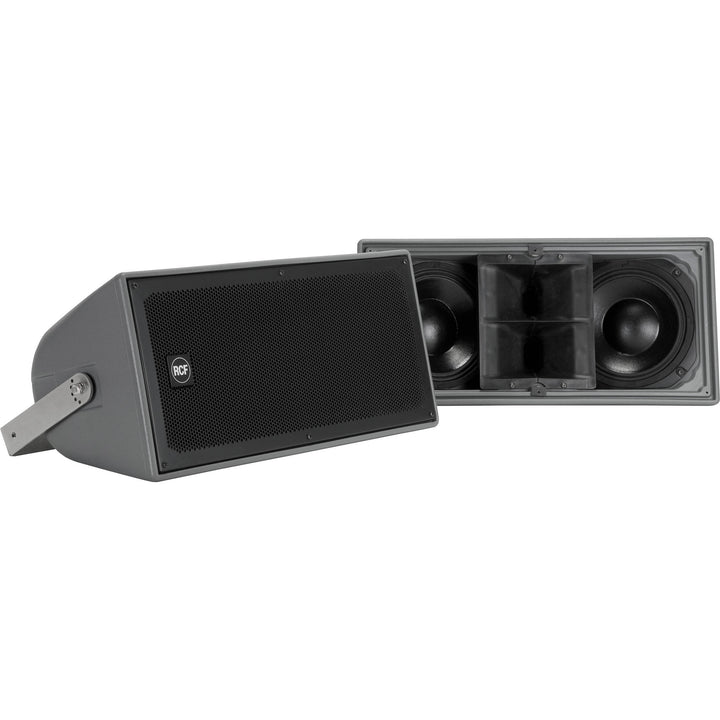

Capable of handling 500W through a pair of 8" woofers and dual 1" high compression drivers, the coverage pattern of the P5228 allows for precise vertical coverage and wide horizontal dispersion, making it perfect for array systems in large facilities. The UV protected, single-piece, molded enclosure is made of medium density polyurethane and has stainless steel mount brackets for superior resistance to the elements. The connections to the amplifier are via watertight multi-pole connectors for added weather resistance.

If you need precise, powerful sound no matter the environment, you need the RCF P5228.

Features

• 500 W RMS power handling
• Weatherproof cabinet IP55
• Aluminum grill and stainless steel bracket
• Two 8" high-output LF transducers with 2.5" voice coil
• One RCF Precision neodymium 1" compression driver with 1.75" diaphragm assembly
• 90° x 20° constant directivity horn
• 2° x 15° enclosure sides for array configurations
• Active Mosfet Compression Driver Protection
• LICC (Low Impedance Compensated Crossover) network
• Input connector 4 pole Amphenol IP67

Specifications

• Frequency Response (-10dB):
  • 80 Hz ÷ 20000 Hz
• Max SPL @ 1m:
  • 131 dB
• Horizontal coverage angle:
  • 90°
• Vertical coverage angle:
  • 20°
• Directivity index Q:
  • 11
• System Sensitivity:
  • 98 dB
• Nominal Impedance (Ohm):
  • 8 ohm
• Power Handling:
  • 500 W RMS
• Peak Power Handling:
  • 2000 W PEAK
• Recommended Amplifier:
  • 1000 W
• Protections:
  • Dynamic active mosfet
• Crossover frequencies:
  • 1300 Hz
• Transducers
  • Compression Driver:
  • 1.0'' neo, 1.75'' v.c
  • Nominal Impedance (Ohm):
  • 16 ohm
  • Input Power Rating:
  • 50 W AES, 100 W PEAK
  • Sensitivity (dB, 1W @ 1m):
  • 109 dB, 1W @ 1m
• Woofer:
  • 2 x 8'' neo, 2.5'' v.c
  • Nominal Impedance (Ohm):
  • 16 ohm
  • Input Power Rating:
  • 300 W AES, 600 W PEAK
  • Sensitivity (dB, 1W @ 1m):
  • 95 dB, 1W @ 1m
  • Input connectors:
    • Amphenol eco/mat IP 67
  • IP protection grade:
    • IP 55
  • CE marking:
    • Yes
  • Color:
    • Grey
  • Hardware:
    • 4 x M8 inserts
  • Grille:
    • Aluminum with waterproof clothing
  • Cabinet/Case Material:
    • PE Low Density
  • Width:
    • 566 mm / 22.28 inches
  • Depth:
    • 250 mm / 9.84 inches
  • Height:
    • 268 mm / 10.55 inches
  • Weight:
    • 14 kg / 30.86 lbs
  • Package Weight:
    • 17 kg / 37.48 lbs
  • Package Depth:
    • 289 mm / 11.38 inches
  • Package Width:
    • 289 mm / 11.38 inches
  • Package Height:
  • 604 mm / 23.78 inches
