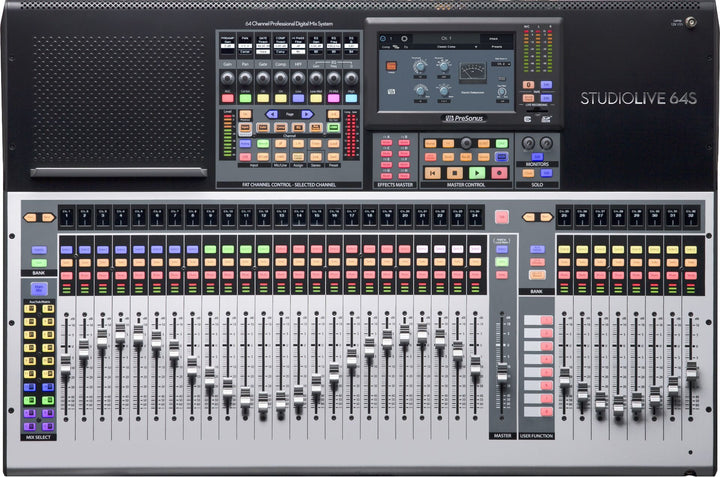

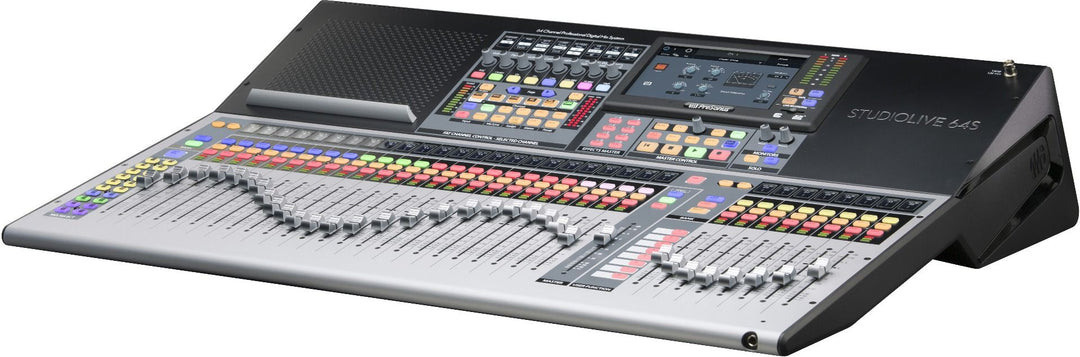

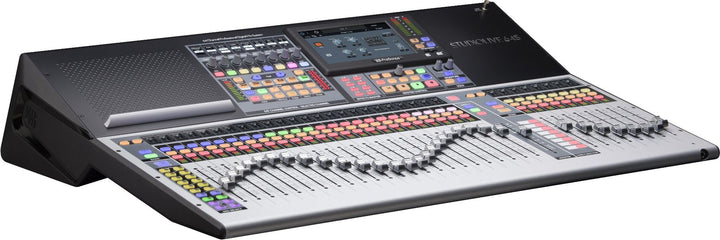

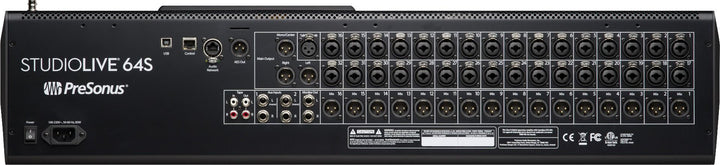

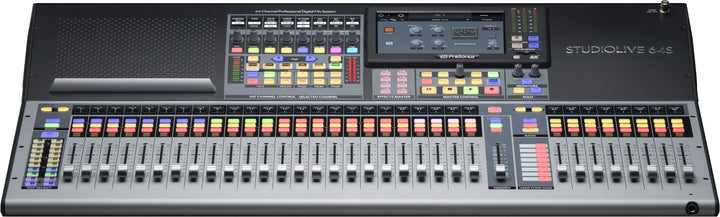

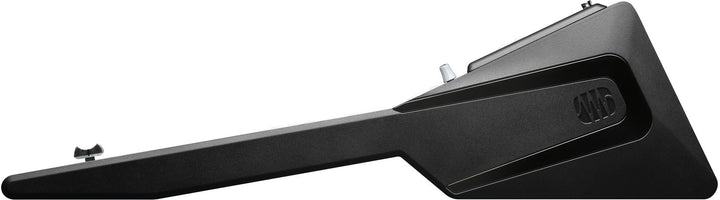

The small format mixer with large format mixer power—StudioLive 64S from PerSonus is a powerful and compact 64-channel digital mixer capable of powering 76 mixing channels, 43 mix buses, and 526 simultaneous processors. Powered by a dual-core PreSonus FLEX DSP Engine in a sleek profile, this mixer is loaded with large-scale processing power for the ultimate mixing experience. StudioLive32S features eight stereo reverberation systems, as well as Fat Channel plug-in models on every input channel and mix bus.

Allowing you to create a custom, scalable AVB network system, StudioLive Series III digital mixers let you patch any analog input or digital return (AVB, USB, or SD Card) to any channel to customize your mix configuration—without unplugging a cable. Redundant recording options and an automated Virtual Soundcheck mode are provided from 128 (64x64) channels of recording over USB and an integrated 34-track SD recorder. A 7" Touch Display gives you instant access to the dynamics processing parameter, as well as ten included vintage EQs, classic compressor Fat Channel plug-in models, and 15 additional models. Combined with other products within the StudioLive Series III (sold separately), you can create the custom, scalable ecosystem for your desired complete networked solution.

Applications

Installed Sound

Live Touring

Mobile Applications

House of Worship

Theatre

Broadcast

Studio

Features

• Powered by the new quad-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 76 input-channel digital mixer with 33 touch-sensitive motorized faders
• 43 mix buses including Main Mono/Center bus with per-channel level send and Center Divergence control
• 526 simultaneous processors with State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses

Specifications

• ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
• DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
• USB Recording Port: USB 2.0, Type-B
• Bluetooth™ Input: 4.1, stereo
• AES/EBU Output: XLR Male
• Network Control Port: RJ-45
• AVB Audio Network Port: Locking XLR Ethernet
• Internal Processing: 32-bit, floating point
• DSP Engine: Quad-core FLEX DSP
• Sampling Rate: 44.1 and 48 kHz
• A/D/A Bit Depth: 24
• Reference Level for 0 dBFS: +18 dBu
• Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
• Jitter Attenuation: >60 dB (1 ns in, 1 ps out)
• Power Connector: IEC
• Input-Voltage Range: 90 to 230 VAC (±10%)
• Power Requirements (continuous): 85 W
• Recommended Ambient Operating Temperature: 32 ° - 104 ° Fahrenheit
• Dimensions: 32.37" x 22.97" x 6.51"
• Weight: 37.2 lbs.
