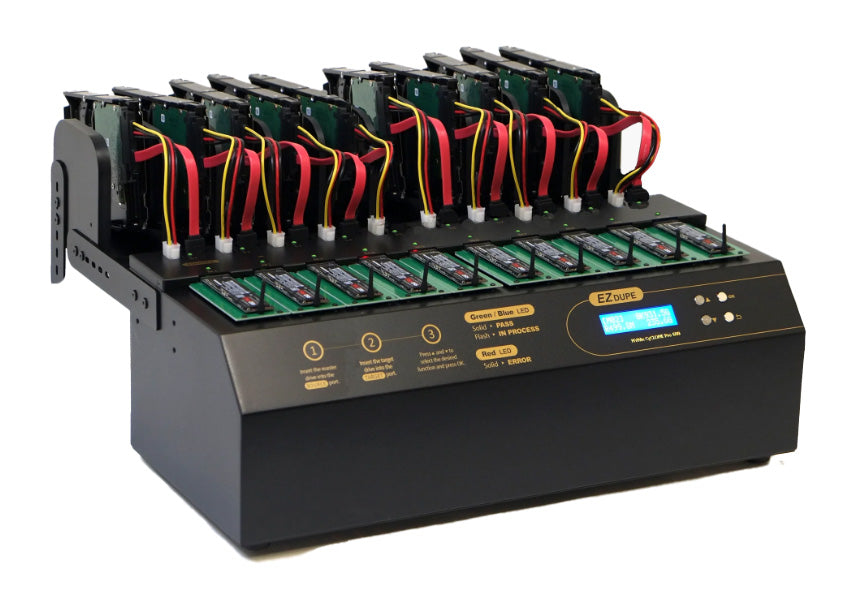

The EZ Dupe NVMECYL300-5M09PP is an advanced 1 to 9 duplicator designed for high-speed, high-volume duplication of M.2 NVMe SSDs and SATA drives. Engineered to support the latest in flash media technology, this unit provides versatile duplication solutions for enterprise-level needs. It efficiently handles multiple drive formats and supports both PCIe NVMe and SATA interfaces, ensuring compatibility across a range of devices.

EZ Dupe NVMECYL300-5M09PP Includes:

• Duplicator
• Power Cord
• Manual
• SATA Cables

EZ Dupe NVMECYL300-5M09PP Features:

• Ultra-fast Duplication: Achieve speeds up to 18 GB/min per destination slot.
• High Capacity Duplication: Simultaneously copy up to 9 M.2 NVMe SSDs or SATA interfaced hard drive disks.
• Crossover Interface Support: Duplicate between M.2 NVMe and SATA connections.
• Advanced Copy Functions: Includes All Partitioned Copy, Non-Zero Copy (excludes zero area data), and Percentage Copy (set endpoint from 0%).
• Intelligent Copy Mode: Quickly copy only system and file data, bypassing unnecessary duplication of entire drives.
• Full Copy Mode: Performs bit-by-bit (sector-by-sector) duplication.
• Daisy-Chaining Capability: Connect up to 255 NVMe Cyclone Pro 300 units for expanded duplication.
• Secure Erase: DoD 5220.22-M compliant erase function for permanent data deletion.
• Quality and Capacity Checks: Tests for bad sectors and verifies drive capacity.
• Speed Measurement: Allows assessment of actual read and write speeds.
• Event Log Download: Provides job status, date/time stamp, and drive IDs for record-keeping.
• Universal Compatibility: Supports all file formats, sizes, and drive capacities, including MBR, GPT, and advanced (4K) formats.
• Password Protection: Option to set a boot-up password to prevent unauthorized use.
• Standalone Operation: No need for a computer or additional software.
• Durable Design: Built for reliable, long-term use with ergonomic access to drives.
• Warranty: Includes a 1-year warranty with lifetime support.

EZ Dupe NVMECYL300-5M09PP Specifications:

• Operating Type: Stand-alone Disk-to-Disk duplication
• Number of Copies
  • Up to 9 copies of M.2 PCIe NVMe or M.2 SATA SSD, SATA Interfaced Hard Drive Disks (3.5" or 2.5")
• Transfer Speed: 18GB/min (max speed depends M. 2 NVMe or M.2 SATA Internal SSD)
• Copy Mode
  • System and Files (Quick Copy)
  • Whole HDD (Full Copy)
  • All Partitioned Copy - Partitioned area only
  • *Percentage Copy - Set up Starting & End point copy
  • *Non-Zero Copy - For proprietary systems such as SGI, BOS, and other unknown formats can be quick copy in the "Non Zero" copy mode to exclude any "zero" data area for rapid and efficient duplication
  • *New Feature exclusive to EZ Dupe
• Format Supported on Quick Copy
  • Window: exFAT, FAT16/32, NTFS
  • Linux: EXT2 / EXT3 / EXT4
  • Mac OS: HFS, HFS+, HFSX
  • Other formats can be copied using the "Whole media" function
• Erase Mode
  • Full Erase - Whole Media
  • Quick Erase - Essential Files
  • DoD 3-pass - 3 times erase in 5220.22-M standard
  • DoD 7-pass - 7 times erase in 5220.22-M ECE standard
  • Secure Erase
  • Enhanced SSD Erase
  • HPA Erase
  • DCO Erase
• Supported Storage
  • M.2 PCie NVMe / M.2 SATA
  • 22mm wide keys
  • 2230
  • 2242
  • 2260
  • 2280
• Key Types
  • NGFF (M.2) B key
  • M key
  • B + M key
• SATA Slot (Top Slots)
  • 2.5" or 3.5" Hard Drive / SSD (up to 5V per slot)
• Language Support: English
• Power Requirement: 115V - 230V
• Storage Temperature: 4°C ~ 85°C
• Operating Temperature: 32°F - 140°F
• Storage Humidity: 20% ~ 80%
• Operating Humidity: 15% ~ 95%
• Weight: 14 lbs
