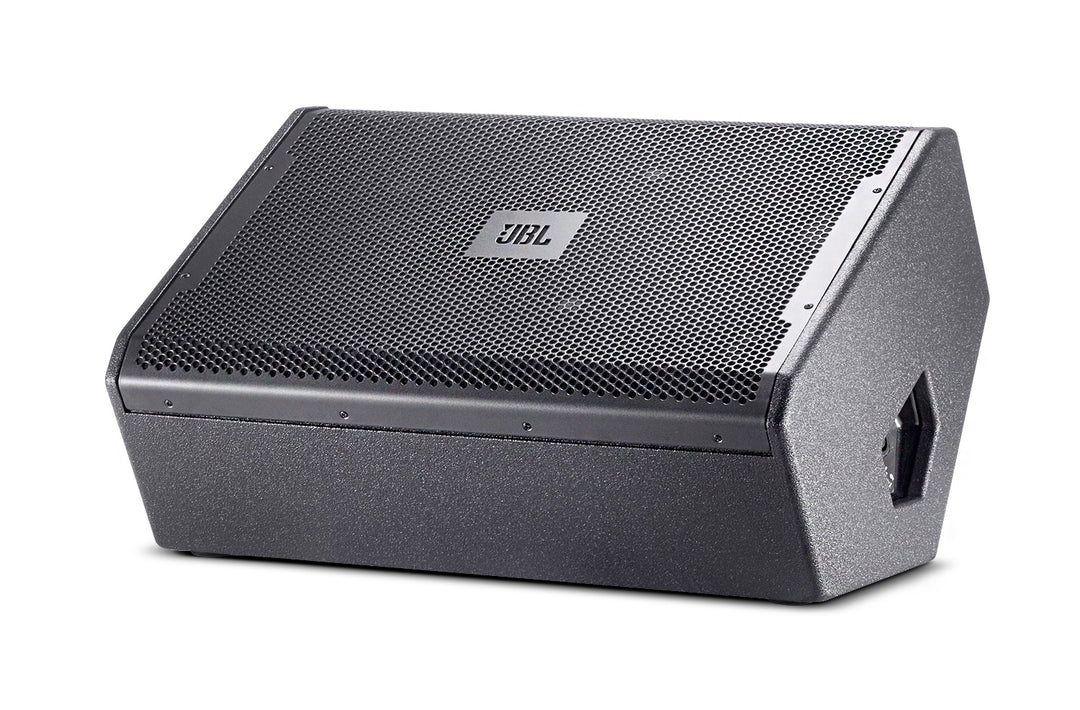

The VRX915M is a dedicated, compact and lightweight 15" two way touring-class floor monitor, with only a 14.75" stage height and JBL’s latest neodymium-magnet transducers. A 15" 2265H patented Differential Drive® woofer handles 800 watts (continuous) and delivers accurate and precise low frequency reproduction. The 2452H 4" voice-coil compression driver is coupled to a 50°x 90° aluminum horn to provide smooth and clear high frequency reproduction, critical for high performance monitoring.

Bi-amp or full-range passive operation may be selected via a recessed, high-current switch mounted alongside the NL4 input connector in one of the handle cups. An additional NL4 connector is mounted in the other handle cup for a convenient loop-thru connection, minimizing cable runs on stage.

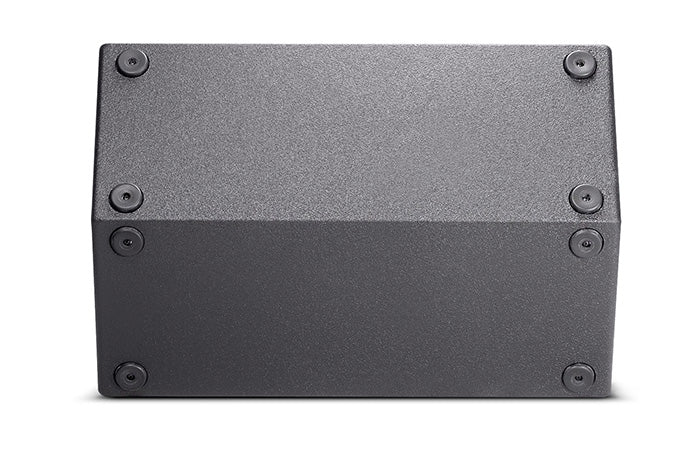

The enclosure is constructed of top quality Baltic birch plywood and is coated in JBL’s rugged DuraFlex™ finish. It is a symmetrical 30° wedge design, with four non-slip rubber feet per side enabling convenient left and right applications of adjacent monitors. The transducers are protected by an attractive 16 gauge CNC-machined steel grille. It is internally lined with acoustically transparent foam to provide additional transducer protection.

Applications

• Live performance stage monitoring
• Entertainers and sound system hire companies
• Corporate A/V presentations

Features

• Compact and low-profile for minimal obstruction ofaudience sightlines
• 50° x 90° nominal coverage
• Bi-amplified or full-range passive operation
• Differential Drive® woofer with neodymium magnet forhigh power capacity and very light weight
• 4" (voice coil) diameter compression driver with neodymium magnet

Specifications

• Frequency Range (-10dB): 60Hz-20kHz
• Frequency Response (+/-3dB): 70Hz-20kHz
• Coverage Pattern: 50° x 90° nominal
• Crossover Modes: Passive/Bi-amp
• Crossover Frequency: 1.1 kHz
• Power Rating, Passive Full-Range(Continuous/Program/Peak): 800W/1600W/3200W, 2 hrs; 600W/1200W/2400W, 100 hrs
• Power Rating, Bi-amp LF (Continuous/Program/Peak):800W/1600W/3200W, 2 hrs; 600W/1200W/2400W, 100 hrs
• Power Rating, Bi-amp HF (Continuous/Program/Peak):75W/150W/300W, 2 hrs
• Maximum SPL: 127dB SPL continuous (133dB SPL peak)
• System Sensitivity (1W @ 1m): 98dB SPL
• LF Driver: 1 x JBL 2265H 15" Differential Drivewoofer, 8 ohms
• HF Driver: 1 x JBL 2452H, 4" diameter voice coil,1.5" exit, neodymium magnet compression driver, 8 ohms
• Nominal Impedance: 8 ohms
• Enclosure: Symmetrical stage monitor, 15/18mm,plywood
• Transport: 2x Integrated handle/input cup
• Finish: Black DuraFlex finish
• Grille: Powder coated, black, 16 gauge perforatedsteel with acoustically transparent black screen backing
• Input Connectors: Neutrik Speakon NL-4 (x2), one oneach end
• Dimensions (H x W x D): 24.75" x 17" x 12.75" (14.75"stage height)
• Net Weight: 46 lbs
