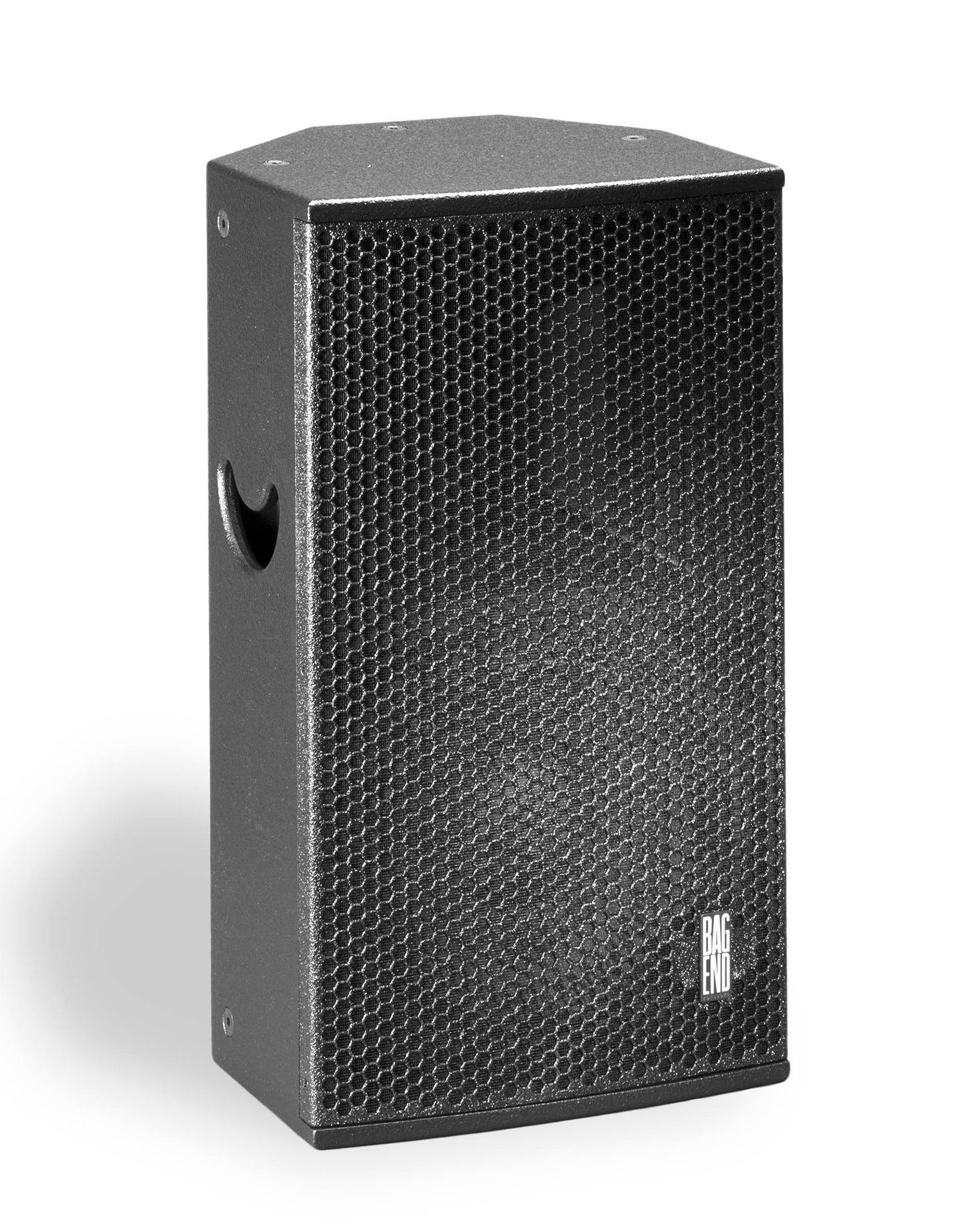

The high definition, Bag End CDS-112, loudspeaker produces high impact sound over its controlled coverage angle to allow precise coverage for audiences in a variety of applications. This point source loudspeaker is known for its extraordinary fidelity and extremely high output. It is engineered for exceptional mid field and long throw performance and it excels in music playback and stage monitoring applications. The multiple angle design along with the rotatable 90 degree (h) by 60 degree (v) coverage pattern offers optimal mounting and coverage options in live performance venues. This speaker outputs crisp quality even when up against walls and ceilings or when used as a stage monitor. The Bag End CDS-112 includes an internal passive Time-Align crossover and an internal switch for bi-amp mode configuration. The Bi-amp mode utilizes the Bag End® Karios KS26 DSP processor including the presets for crossover, EQ, Time-Align and system limiting protection. Its uniform controlled directivity, surprisingly powerful bass and Time-Align fidelity, coupled with its small size and hi output, makes it perfect for most standalone applications. Constructed from 15mm Baltic Birch plywood, this passive loudspeaker features a durable and attractive black Ro Tex finish, durable steel grille, Integral handles, an internal stand adapter and M10 attachment points.

Bag End CDS-112 Applications:

• Auditorium Sound Reinforcement
• Sports Facilities
• Audio-Visual Systems
• Portable Sound Reinforcement
• House of Worship Installations
• Theatrical Sound Installations
• Nightclub Installations
• Stage & Vocal Monitor

Bag End CDS-112 Specifications:

• System Type:2-way vented 1.7 ft^3
• Enclosure: 15 mm 11-ply birch plywood
• Finish: Black Ro Tex™ True water born environmental finish
• Grille: 14 Gauge black powder coated perforated steel
• Low Frequency Components: E-12F Transducer, 12” Cone,2.5” Voice coil, Neodymium Magnet
• High Frequency Components: E-806 Transducer, 1.4” Exit Neodymium compression driver, CD Controlled Directivity Waveguide
• Input Connector:Dual Neutrik® speakON
• Hardware: Flypoints, Forged steel eye bolts
• Fly Points Safe Working Load: 200 lbs Upper most rigging points
• Crossover Type: Passive or Bi Amp, Time-Align® equalizer filter @ 1 kHz
• Sensitivity: 96 dB SPL (2.83 V @ 1m)
• Frequency Response: 70 Hz to 20 kHz
• Low Frequency Limit: 53 Hz (-10dB)
• Power Handling: 1200 W continuous (IEC 60268)
• Recommended Amplifier Power: 900 to 1800 W at rated impedance
• Rated Impedance: 4 Ohms
• Coverage Pattern: 500 Hz – 16 kHz, 105 degrees x 75 degrees
• Q 500 Hz – 16 kHz: 9.1
• Di 500 Hz – 16 kHz: 9.3 dB
• Recommended High Pass Filter: 55 Hz Butterworth 18dB/octave
• Polarity: A positive asymmetrical signal applied to the + terminal will result in a positive asymmetrical acoustical pressure
• Dimensions:25.25” H x 14.5” W x 13.75” D (64 cm x 36cm x 35 cm)
• Weight: 47 lbs (21 kg)
• Custom Finishes: Optional custom finishes include white, unfinished ready to paint and outdoor weather treatment
• 70/100/140 Volt Operation: Optional 400 Watt taped internal transformer
