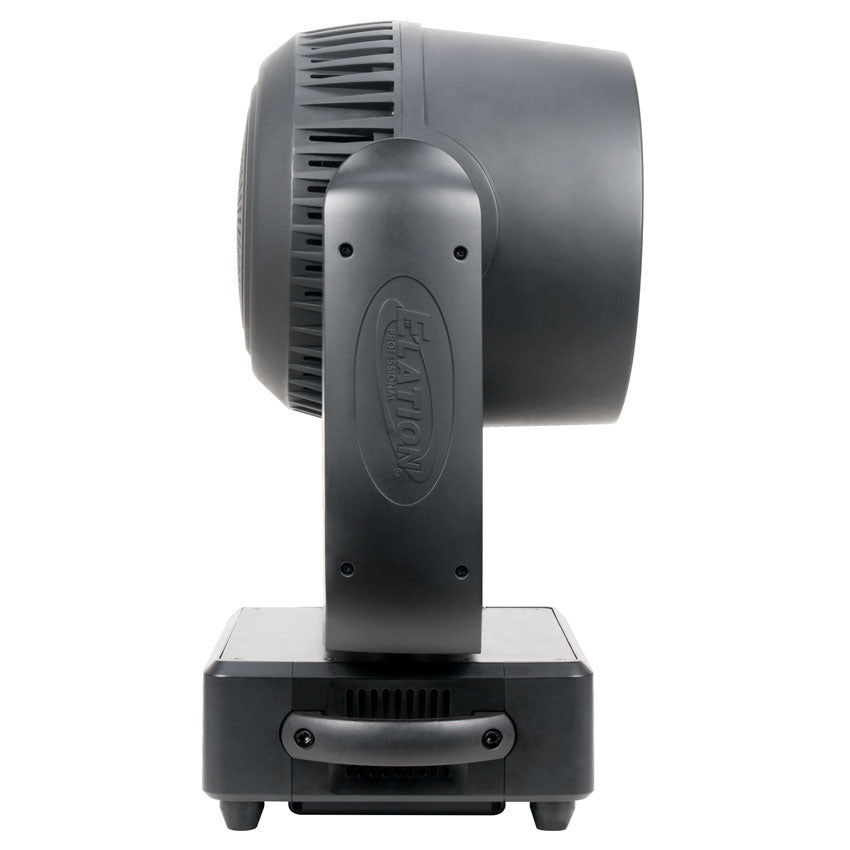

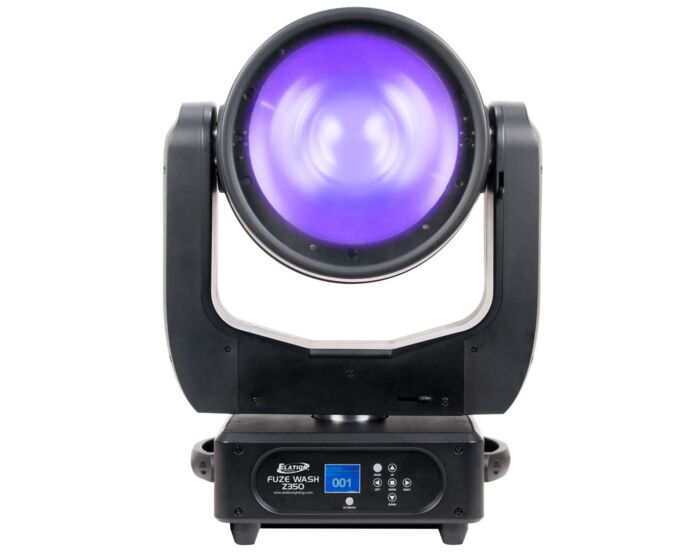

A single-source moving head PAR lighting fixture, the FUZE WASH Z350™ from Elation Pro Lighting features a 350 W Quad-Color RGBW COB LED. Other features include RGBW color mixing, a motorized zoom from 6° to 46°, pan and tilt, variable dimming curve and strobe effects, DMX and RDM (remote device management) protocol compatibility, LCD menu display with 7-button control panel, DMX and power in/out connections, multiple unit power linking, flicker-free operation for use in TV and Film shooting environments, plus a multi-voltage universal auto switching power supply (110-240v).

Features

• 350 W RGBW COB LED Moving Head Wash Luminaire
• RGBW Color Mixing
• 6° to 46° Wide Motorized Zoom Range
• Variable Dimming Curves
• Multiple Unit Power-Linking
• RDM (Remote Device Management)
• Flicker-free Operation for TV and FILM

Specifications

• Source:
  • 350 W RGBW COB LED
  • 100,000 Hour Average Lamp Life
  • Note: *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• Photometric Data:
  • 60,280 LUX 5,600 FC @6.6’ (2m) (6° Full ON)
  • 3,735 LUX 347 FC @6.6’ (2m) (46° Full ON)
  • Color: RGBW
• Effects:
  • RGBW Color Mixing
  • 6° to 46° Beam Zoom Range
  • Electronic Strobe, Dimming and Variable Dimming Curves
  • (64) Color Presets and (14) Unique Color Macros
• Control/Connections:
  • Four DMX Channel Modes (19 Total Channels)
  • 7-Button Control Panel and LCD Menu Display
  • RDM (Remote Device Management)

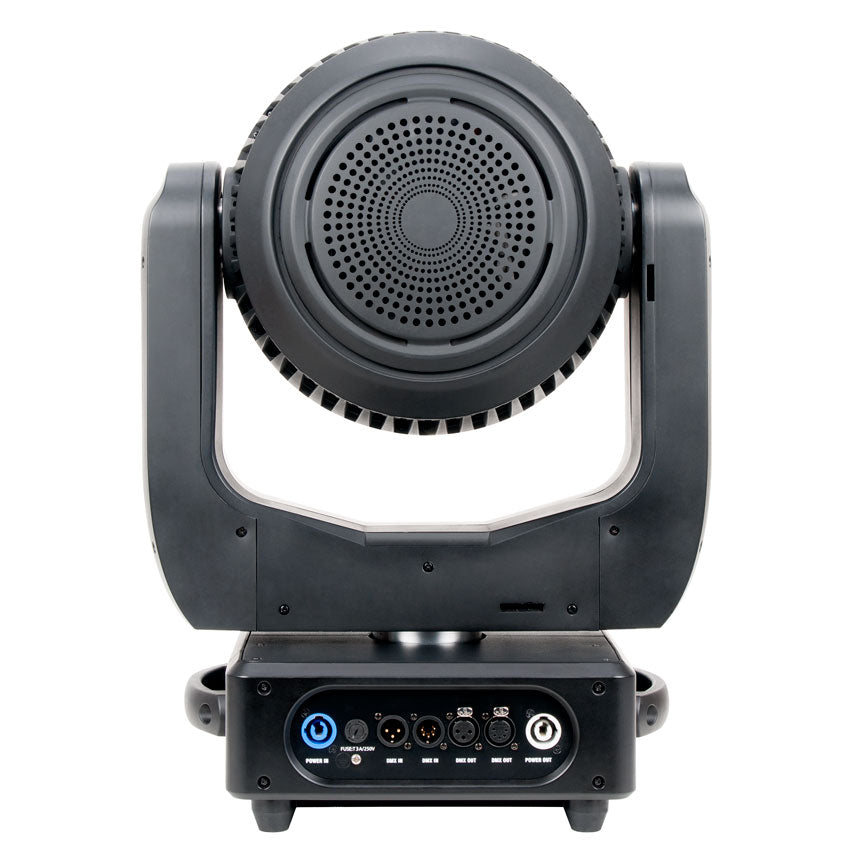

  • 3-pin/5-pin DMX and powerCON In/Out
• Size/Weight:
  • Dimensions (L x W x Vertical Height): 16.3" x 11.6" x 18.0" (414 x 294 x 461mm)
  • Weight: 45 lbs. (20.4 kg)
• Electrical/Thermal:
  • AC 110-240V - 50/60Hz
  • 399 W Max Power Consumption
  • Multi-unit Power-Linking
  • Environmental Operating Temperatures: 5 °F to 113 °F (-15 °C to 45 °C)
• Approvals/Ratings: CE | RoHs | IP30
