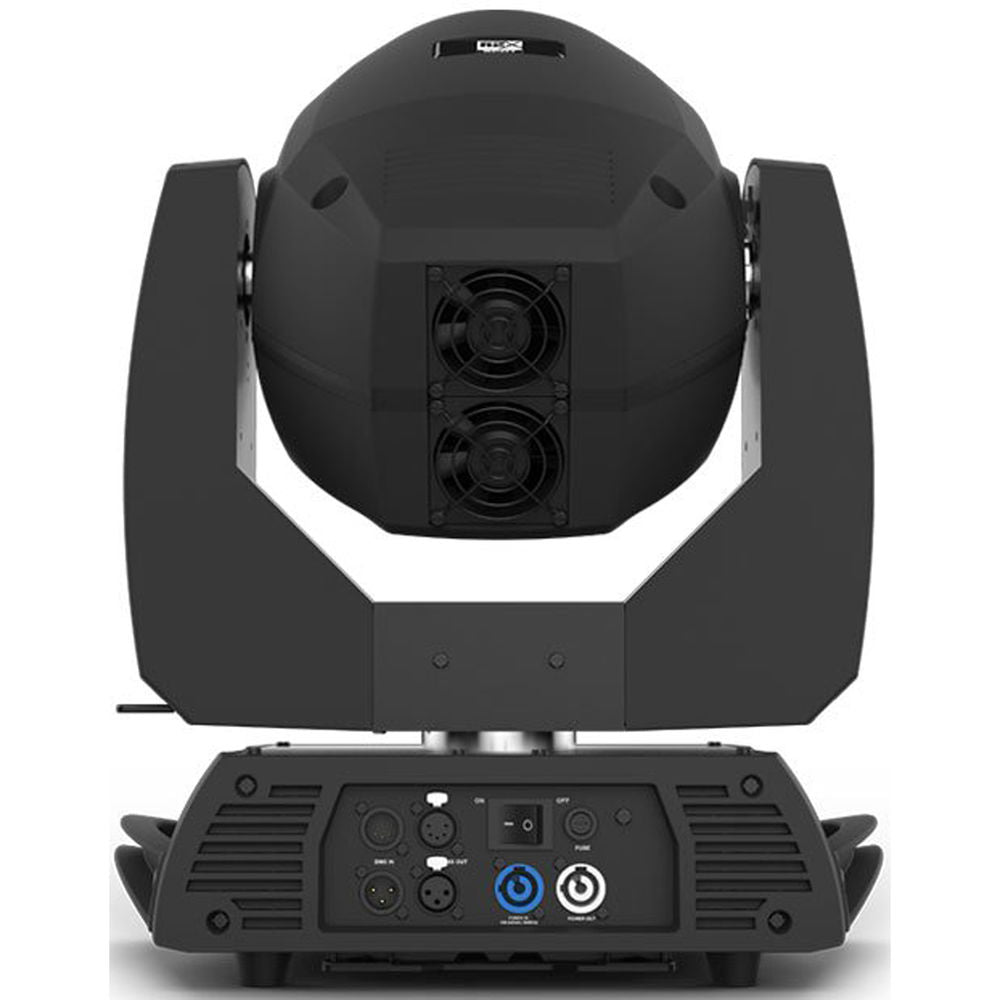

The Chauvet Professional Rogue R2X Spot, all supported by professional quality engineering, offers incredible value with a stunning range of colors and effects. This fixture offers an unlimited number of shape-changing and split-color effects by building on the features of the R1X Spot while adding gobo-morphing technology and two variable scrolling color wheels. It outputs a brilliant light that creates an unparalleled audience experience by using a powerful 300 W LED light source in a 16.5° beam angle.

Includes

• Rogue R2X Spot
• Neutrik powerCON power cord
• Omega bracket with mounting hardware

Features

• Intense 300 W LED light engine for strong, bold beams
• Perfect gobo morphing between gobo wheels
• Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• Neutrik® powerCON® power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• Simple and complex DMX channel profiles for programming versatility

Specifications

• Optical
  • Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 7,836 K, 50,000 hours life expectancy
  • CRI: 72
  • Beam Angle: 16.5°
  • Field Angle: 16.5°
  • Lumens – Source: 23,000
  • Lumens – Output: 11,000
  • Illuminance (total): 9,187 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz
• Dynamic Effects
  • Pan and Tilt: 540°/250°
  • Pan and Tilt Ranges:
    • 540°, 360°, 180° pan
    • 250°, 180°, 90° tilt
  • Colors (1): 7 + white, split colors, continuous scroll at variable speeds
  • Colors (2): 7 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2,3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max.thickness)
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6(glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
  • Framing Shutters: No
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: No
  • Move-in-Black: Yes
• Construction / Physical
  • Dimensions (single unit): 16.1 x 13.5 x 19.25 in (409 x 343 x 489 mm)
  • Weight (single unit): 47.8 lb (21.7 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer
• Connections
  • Power Connection: Edison (local) plug to Neutrik® powerCON®
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 18 or 21
  • Modes/Personalities: 2 personalities (18, 21)
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking:
    • 3 units @ 120 V
    • 6 units @ 208 V
    • 7 units @ 230 V
  • Power and Current: 517 W, 4.31 A @ 120 V, 60 Hz
  • Power and Current: 427 W, 2.05 A @ 208 V, 60 Hz
  • Power and Current: 437 W, 1.9 A @ 230 V, 50 Hz
  • Breaker Size: F 7A, 250 V
• Certifications / Qualifications
  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Manufacturer Warranty (US):
  • Fixture: 3-year
  • LED Engine: 5-year (covers LED failure, excluding lumen maintenance (L70) and color maintenance)
