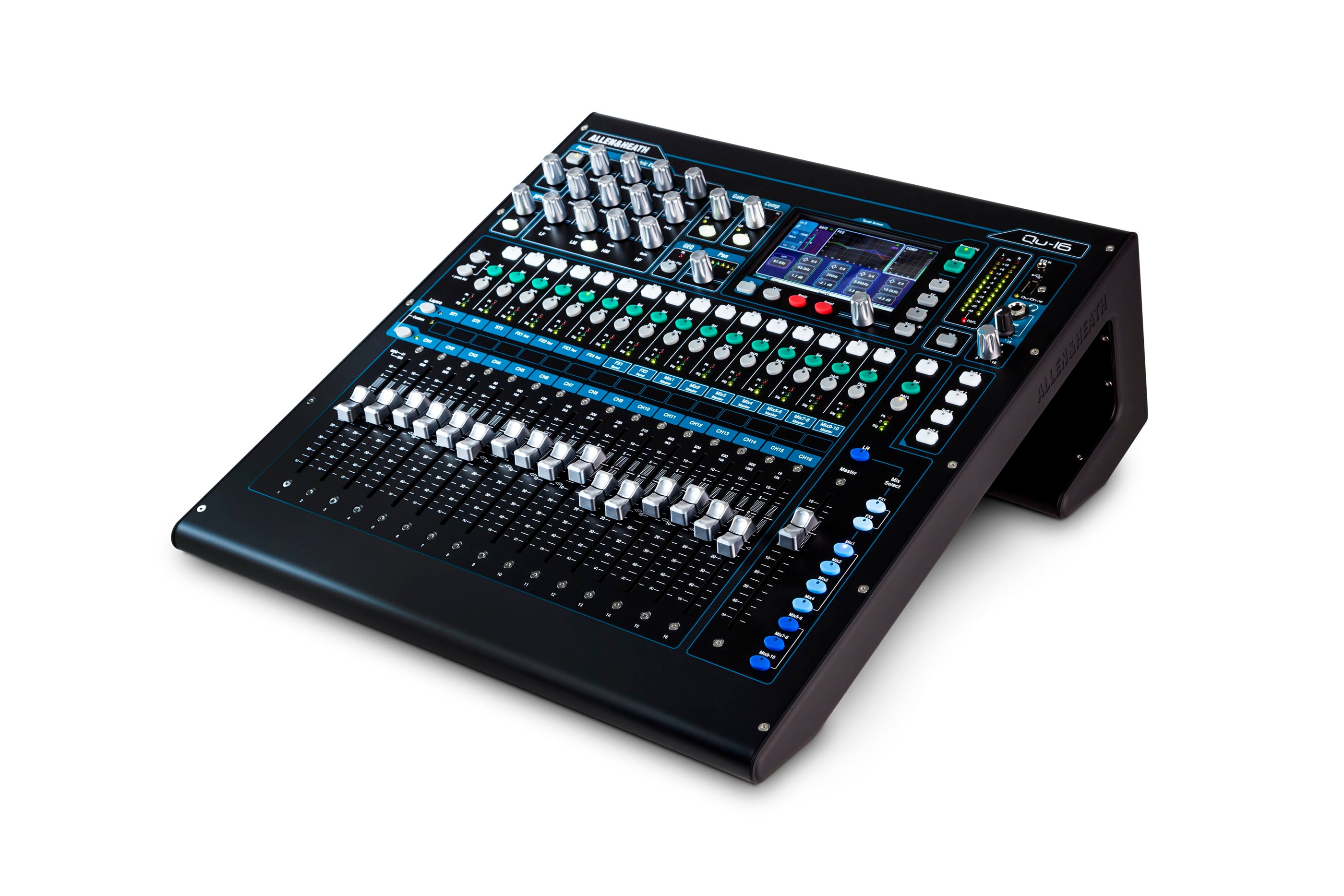

The Qu-16 digital mixer features 16 buses, 4 stereo effect returns, and a wide range of routing options and controls. The device boasts a 5-inch touchscreen display with an 800x480 resolution, which enables you to monitor your metering and RTA views, effects tracks, processing, routing, and saved scenes. The mixer has 16 tracks that can be adjusted using the 16 100mm motorized faders, while built-in processing functionalities allow you to apply EQ, compression, gating, polarity switching, and delay to all 16 tracks. Additionally, all your settings can be saved as a scene and easily retrieved for quick setup.

Moreover, the Qu-16 mixer also functions as a USB audio interface due to its internal converters, allowing you to record to any Core Audio-compatible software on your Mac or to an external USB hard drive. The mixer is compatible with the Qu-Pad iPad app that enables remote mixing control via a wireless network. The Qu-16 unit can be mounted on a rack or a desk.

The Allen & Heath Padded Gig Bag is specially designed to safeguard the Qu-16C and Qu-16 digital mixers from potential wear and tear while on the road. This gig bag is made of ballistic nylon, offering enhanced protection. It has a comfort grip handle, a spacious accessory pocket, and a detachable shoulder strap.

Allen & Heath QU-16C Features:

• Chrome Knobs & Faders + Updated Firmware
• Touchscreen Interface
• 16 Mic/Line Inputs and 3x Stereo Inputs
• Motorized 100mm Faders
• Recallable Preamps
• USB Audio Interface
• Record/Playback with USB Drives
• iPad Qu-Pad Control App
• 16 Buses and 4 Stereo FX Returns
• Built-In Processing and Effects

Allen & Heath QU-16C Bag Features:

• Fits QU-16C and QU-16 Mixers
• Made From Ballistic Nylon
• Large Accessory Pocket
• Comfort-Grip Handle
• Detachable Shoulder Strap

Allen & Heath QU-16C-BAG-BUNDLE-K Specifications:

• Type: Digital
• Channels: 16
• Inputs - Mic Preamps: (16) XLR
• Phantom Power: 16 channels
• Inputs - Line: (16) 1/4"
• Inputs - Other: (4) 1/4" (2 stereo in), 1 x 1/8" TRS (stereo in)
• Outputs - Main: (2) XLR (left, right), (2) 1/4" (2 track out), (2) 1/4" (alt out)
• Outputs - Other: (4) XLR (mono mix outs), (3) XLR pairs (stereo mix outs)
• Outputs - Digital: (1) Ethernet dSnake, (1) XLR AES
• Aux Sends: (10) Aux Sends
• Busses/Groups: 16-bus
• Talkback: (1) XLR
• Data I/O: (1) Ethernet TCP/IP Network
• Headphones: (1) 1/4" TRS
• USB: (1) Type B, (1) Type A
• Computer Connectivity: USB (24 x 22), Ethernet
• Faders: (16) 100mm channels, (1) 100mm master
• EQ Bands: Parametric EQ, 28-band graphic EQ
• Effects: Reverb, delay, chorus, phaser, flanger (4 x stereo FX returns)
• DAW Control: MIDI DAW control driver for Mac (HUI, Mackie Control)
• Rackmountable: Yes
• Height: 7.32" (desktop position), 7.48" (rackmounted)
• Depth: 19.52" (desktop position), 18.54" (rackmounted)
• Width: 17.32"
• Weight: 22 lbs
• Material: Ballistic nylon
• Type of Closure: Hook and loop fasteners
• Carrying/Transport Options:
• Comfort-grip handles
• Detachable shoulder strap
• Dimensions:Not specified by manufacturer
• Weight: Not specified by manufacturer
