Allen & Heath dLive CTi1500 Control Surface with 12 Faders and 12" Touchscreen

Price
$14,999

Free Shipping on every single order. Period.

In stock, ships in 1-3 business days
American Express
Apple Pay
Diners Club
Discover
Meta Pay
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa
Important Shipping Details

Due to fluctuations in demand and stock availability, lead times for products marked as "In stock and ready for shipping" are subject to change. In general, products will fit into one of these 3 categories:

- Most products are in stock and ready to ship

- Some may take anywhere from 11-20 days to ship

- Very few will take 30+ days to ship due to backorder

- Shipping is always FREE regardless of the lead time

Please review our Shipping Policy here or contact support@audiolifeinc.com.

Frequently Bought Together

Free Shipping

on every single order

Fast Delivery

domestic orders

All Star Service

we're here for you

Price Matching

match our competitors

Description

Providing legendary Allen & Heath audio quality in a compact road-ready package, the AH-DLIVE-CTI15 is the console you want for fly dates, bus tours, and support slots. The goal was to create a surface that would weigh in at under 50lbs including the flight case (sold separately). The dLive C Class C1500 12 fader surface with 12" touchscreen is the realization of that goal!

The desk has 12 faders (with 6 layers) along with a host of rotary controls and 19 assignable softkeys retaining the tactile feel of its larger dLive siblings. The 12" capacitive touchscreen gives you a direct window into every aspect of your mix where you can pinch, swipe, and drag and drop your EQ and dynamics curves, call up parameters, scan layers, and more. And to ensure you can see everything wherever you happen to be, the touch screen was engineered with daylight visibility.

Allen & Heath AH-DLIVE-CTI15 Includes:

  • dLive CTi-1500 Surface
  • CAT5 Cable (2m)
  • Getting Started Guide AP12150
  • Safety Sheet
  • IEC mains lead

Allen & Heath AH-DLIVE-CTI15 Features:

  • Titanium side panels and lightweight alloy metalwork
  • Weighs just 11.5kg / 25.4lbs
  • Can fly under 23kg with case*, I/O card and dust cover (*flightcase must weigh under 10kg/22lbs)
  • 12 faders
  • Fully assignable layout – 72 fader strips
  • Harmony UI integrates screen and wrap-around controls
  • 12” capacitive touchscreen
  • Gesture control – pinch, swipe, drag ‘n drop
  • Dedicated multi-mode EQ view
  • Configurable widget areas for Scenes, meters, FX and more
  • 19 assignable SoftKeys
  • Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback

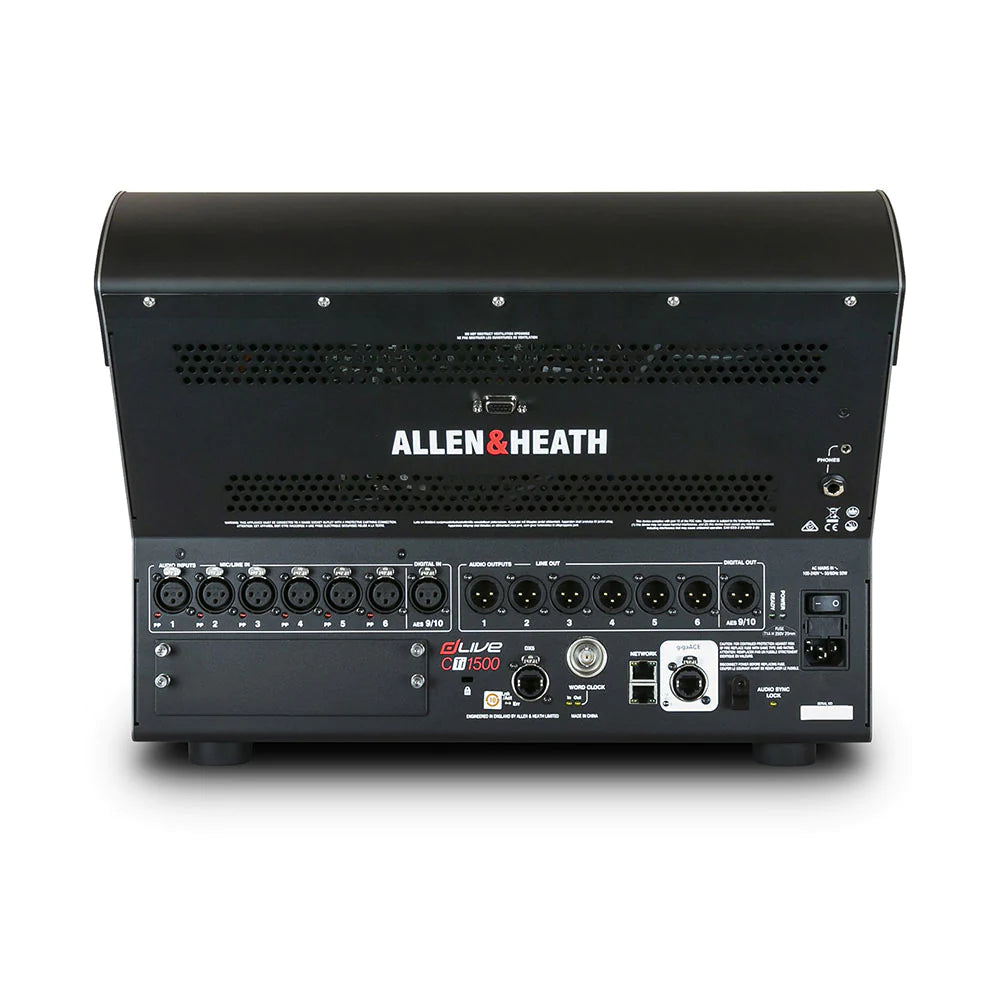

  • 6 XLR mic/line in, 6 XLR line out
  • 1 digital st AES3 in, 1 digital st AES3 out
  • Connection hub
  • GigaACE gigabit link to MixRack
  • DX link for I/O expansion
  • I/O Port – 128 ch 96 kHz
  • 2x Network ports
  • Wordclock BNC I/O
  • Video output

Allen & Heath AH-DLIVE-CTI15 Specifications:

  • Inputs
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analogue Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
    • Mic EIN: -127dB with 150Ω source
    • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
    • Digital Inputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
    • SRC range: 32k - 192kHz, with bypass option
  • System
    • Measured balanced: XLR into XLR out, 20-20kHz, minimum Gain, Pad out
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz +/- 20 PPM
    • Latency:
      • 0.7 ms (MixRack XLR in to XLR out, Input to Mix)
      • + 5 samples, Surface to Mixrack
      • + 8 samples, DX32 to Mixrack (DX hop)
    • Operating Temperature Range: 0 deg C to 35 deg C (32 deg F to 95 deg F)
    • Mains Power: 100-240V AC, 50-60Hz, 110W max
  • Outputs
    • Analogue XLR Outputs: Balanced
    • Output Impedance
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise:
      • -92dBu (muted, 20-20kHz)
      • -90dBu (muted, 20-40kHz)
    • Digital Outputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
    • 96kHz sampling rate, switchable to 48kHz, 44.1kHz
    • USB Audio playback: Mono/stereo .WAV files, 16/24bit, 44.1/48/96kHz
    • USB Audio recording: Stereo .WAV files, 24bit 96kHz
  • Dimensions (WxDxH): 17.4"x 25.4"x 13.27" (440 x 644 x 337 mm)
  • Weights: 25.4 lbs (11.5 kg)
